Requirement of Materials by Piping Code ASME B31.3 Chapter III in a Process Plant (3 PDHs)

The selection of materials is often set by and under the control of Engineers and personnel from Quality who, although qualified in their own discipline, may not have received formal Material or Mechanical Engineering training.  To be effective, Engineers and Technicians should have a fundamental understanding of the principles that dictate the requirement of materials by the Construction Code.

This 3 hour course is designed to meet the needs of Mechanical Engineers, Material Engineers, QA/QC Personnel and Inspectors from Design, Construction and Owner Companies.  It is an excellent course for young engineers to get an overview of how materials are classified, specified, and how fluid service and temperature impact the selection.

The requirement of the materials will be based on ASME B31.3 Code.

Objective

• To provide a basic understanding of material classification and Specification
• To understand the prohibitions, limitations and requirements set by the Code (ASME B31.3)
• To provide an awareness of brittle fracture and notch toughness requirement
• To provide greater understanding of the code stress Table A-1 and A-2 on material limitations

Who Should Attend

• Industrial and commercial plant & facilities engineers
• Industrial and commercial plant & facilities operators
• Process engineers
• Consultants
• Design engineers

Individuals who are involved in the design and operation of a process plant.  Professionals who need to add to their current experience and knowledge of mechanical engineering. Mechanical engineers who require practical knowledge of certain aspects of mechanical engineering or who need to refresh their knowledge.  New graduates will benefit from the practical industrial experience of the instructor.

Understanding ASME B31.3 Stress Table A-1

• How to use Table A-1

General Understanding Materials

• Classification Systems and Specification
• Generic names, Trade Names and Proprietary designations
• ASTM, ASME, AISI, ACI, UNS designations
• Common carbon steel piping materials

Fluid Service Categories

• Different Categories of Fluid Services defined by the Code

Materials and Specification

• How code classifies materials?
• What are code Listed Materials?
• Temperature Limitations
• Upper Temperature Limits
• Lower Temperature Limits
• Minimum Design Metal Temperature (MDMT)
• Effect of Ambient Temperature

Low Temperature Limits of Materials

• Minimum Temperature in Code Stress Table A-1
• Interpreting Fig. 323.2.2.A
• Interpreting Fig. 323.2.2.B
• When is impact tested materials required?

Requirement of Low Temperature Toughness Tests by Code

• Interpreting Table 323.2.2
• Avoiding low temperature Materials

Material Selection

• Common Practice
• Understanding Piping Class
• Material Certificate /MTR

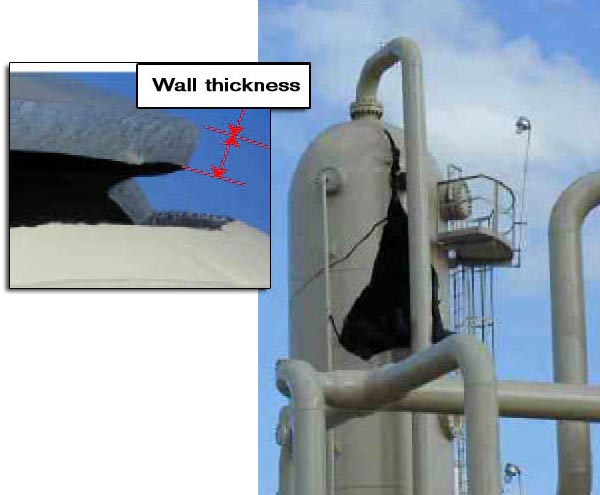

Material Failure Case Studies

Questions and Answers and Feedback to Participants on Achievement of Learning Outcomes

• Understand classification of materials and how they are specified
• Learn the code requirement of by different fluid service
• Gain insight into the impact test requirement.
